1. Ideal for short-run Products requiring double-sided tape application.
2. Flexible setup to meet different production needs
3. Enables quick double-sided tape changes
4. Providing higher precision in adhesive application and any size and easy angle adjustment
5. Simple operation and parameter adjustments
6. The vacuum pump can fix the paper well
|

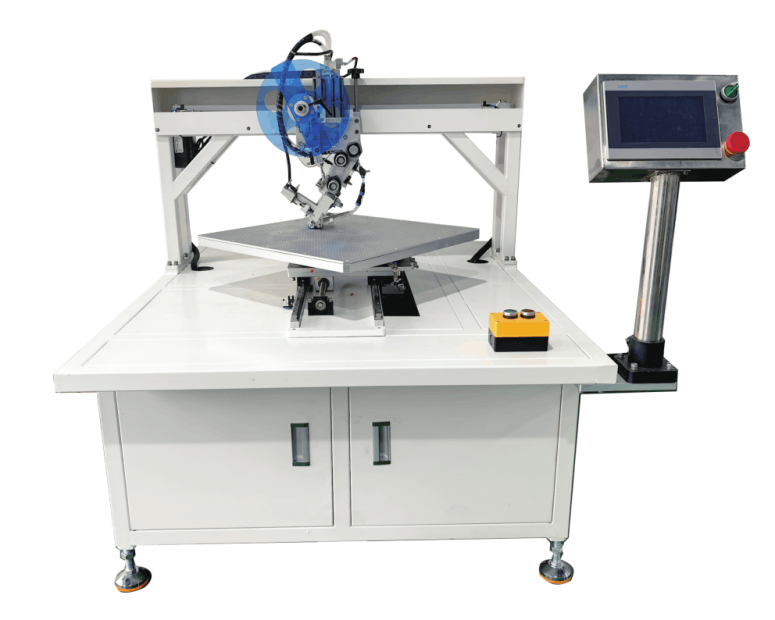

Model
|
MGPC-T55
|
MGPC-T70
|
|
effective working size
|
550*550mm
|
700*700mm
|
|
Overall dimensions
|
1110*1550*1400
|
1400*1700*1400
|
|
Weight
|
200kg
|
260KG
|
|
Power
|
1.2KW. 220V, 50/60HZ
|
|
thickness of tape
|
0.05-2mm
|
|
Wide of tape
|
1.5-50mm
|
|
Length of strip
|
25-550mm
|
|
Working Speed
|
600mm/S
|
|
overlope Precision
|
±1mm
|
|
product fix method
|
vacuum
|
|
Note: the table can be rotated 360 degrees adapt to multi-angele gluing
|
|
|
